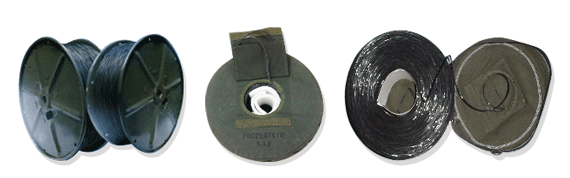

GENERAL
HS : 8544-49-2090
NSN : 6145-32-031-0228
Conform to MIL-C-13294C

MATERIAL
Copper strands : 0.011 inch ± 5% in diameter
Steel strands : 0.011 inch ± 5% in diameter
Insulating compound : Type III Grade 6A

CONSTRUCTION
Conductor : Composed of 4 strands of 0.28mm tinned copper wire and 3 strands
of 0.28mm galvanized steel wire
Insulation : Black Polyethylene extrusion
Jacket : Natural colored nylon extrusion
Finished field wire : Two finished single conductors shall be twisted closely together

ELECTRICAL REQUIREMENTS
Conductor resistance : Not exceeding 151Ω/km at 20˚C
Dielectric strength : Shall be capable of withstanding A.C 1,000 volts for at least 1 minute
Insulation resistance : Not less than 1000 MΩ/km
Conductor Approx.
PE sheath Thickness
(mm)
Nylon Sheath 2 Strand Max.
Conductor
Resistance
(at 20˚C)
Test
Voltage
(Ω/km)
Min.
Insulation
Resistance
at 15.6˚C
(MΩ-km)
Construction No.of Wire/Dia (No/mm) Overall Diameter
(mm)
Thickness (Approx) (mm) Max.Overall Diameter
(mm)
Max.
Pitch (mm)
Overall Diameter
(mm)

7/0.28

0.84 0.45 0.2 2.24 152.4 4.2 150.92 1,000 2,000
