Antenna |
|
| |
|
| |

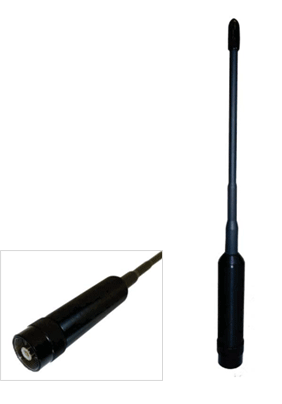

| The antenna AD-44/BW-6600T is a wideband monopole
whip, primarily intended for use with portable
and handheld radio stations in UHF frequency range
from 225 to 512MHz. Electrically the antenna is
optimised for all exploitation conditions (radio
in hand, at the side, at the breast etc.) so it
is not necessary to additionally tune the antenna.

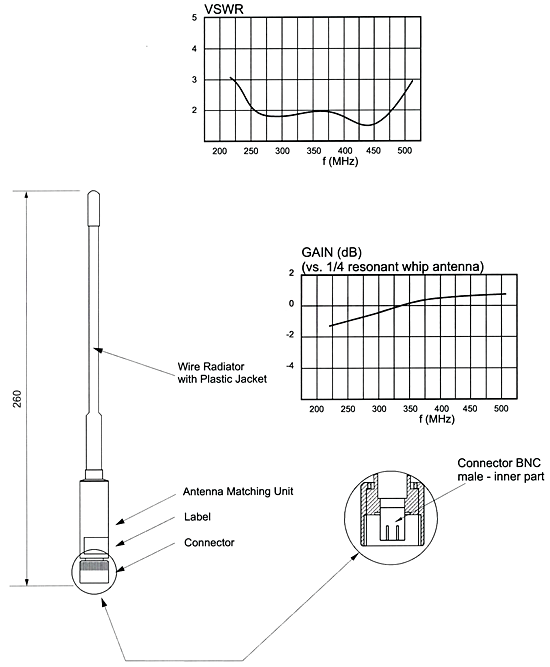

The antenna is composed of radiating part made
of special flexible wounded wire and covered with
a heatshrinkable tube with silicone layer ensuring
high flexibility and roughness. The antenna has
built-in a special microstrip transformer matching
network enclosed in fiberglass housing above the
input coaxial connector. |
| |
| Frequency
range (MHz) |
225 -
512 |
| Impedance
(ohm) |
50 |
| VSWR |
typ.
< 2.5 |
| Polarization |
VER. |
| Maximum
power (W) |
15W CW |
| Colour |
black |
| Height
(mm) |
260 |
| Mass
(g) |
90 |
| Connector |
custom
BNC |
| Temp.
range (℃) |
-40...+70 |
|
|
|
|
|
|
| |
 |
|
|
 |
|
