¢º Home > Product > VehicleM
Specifications
  K131 K311A1 K511A1 K711A1 K912

Configuration, Seatting 4X4, 1+5 4X4, 1+1 6X6, 1+2 ¡ç 8X8, 1+1
Dimensions Overall Length (mm) 4,000 5,460
6,800 7,755 9,750
Overall Width (mm) 1,745 2,180 2,500 2,465 2,600
Overall Height (mm) 1,915 2,450 2,900 2,980 3,470
Wheel Base (mm) 2,360 3,200 3,912 4,547 1,700/3,200/1,350
Tread : Front / Rear (mm) 1,470/1,470 1,740/1,775 1,732/1,780 1,890/1,830 2,010/1,890
Ground Clearance (mm) 220 245 270 270 345
Angle Approach (¢ª) 41 45 46 44 31
Angle of Departure (¢ª) 32 20 40 31 31
Weight Curb Weight (kg) 1,570 3,150 6,500 10,000 29,000
Payload Highway (kg) 540 1,530 4,540 9,080 3m 10ton/
8m 3ton
Cross-country (kg) 360 1,330 2,270 4,540
Gross Weight Highway (kg) 2,110 4,680 11,040 19,080 36,000
Cross-country (kg) 1,930 4,480 8,770 14,540
Performance Max.Speed (km/h) 130 100

90

85 90
Max.Gradeability (%) 60 ¡ç

¡ç

¡ç ¡ç
Cruising Range (km) 480 700

600

600 1,000
Min.Turning Radius (m) 5.9 8.5

11.0

12.9 12
Fording Depth (w/o Kit) (mm) 510 760

¡ç

¡ç ¡ç
Engine Model FE-DOHC D4DA

KK-7.4

D6AZ

D6CA

Type In-line 4-Cylinder In-line 4-Cylinder

In-line 6-Cylinder

¡ç

6 Cylinder in Line

Displacement (cc) 1,998 3,907

7,412

11,149

12,920

Fuel Gasoline Diesel ¡ç ¡ç

¡ç

Max.Horsepower (ps@rpm) 130@6,000 130@2,900 183@2,900 270@2,200

450@1,900

Max.Torque (kg¡¤m@rpm) 18@4,500 37@1,600 51@1,600 98@1,400

190@1,400

Transmission Type 5 Forward, 1 Reverse
¡ç ¡ç ¡ç

16 Forward, 2 Reverse

Transfer Case Number of Speeds Part Time, 2-Speed ¡ç ¡ç ¡ç

Full time, 2-Speed

Fuel System Fuel Tank Capacity (§¤) 53 106 208 295 400
Electric System Voltage (V) 24 ¡ç ¡ç ¡ç ¡ç
Tire LT 235/75 R15 36"-12.5R 16.5LT 9.00-20 8PR 11.00-2012PR 13R22.5 18PR

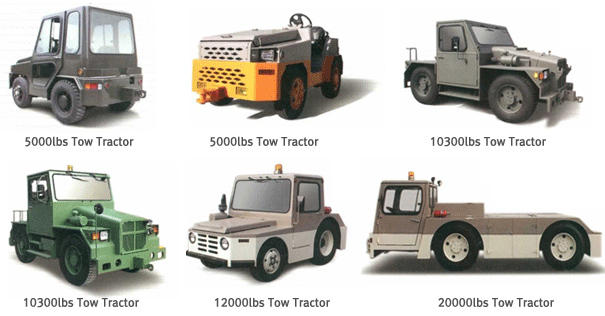

Aircraft Tow Tractors

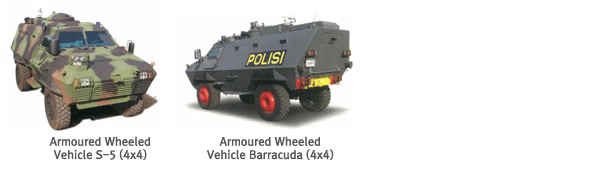

Armoured Wheeled Vehicles

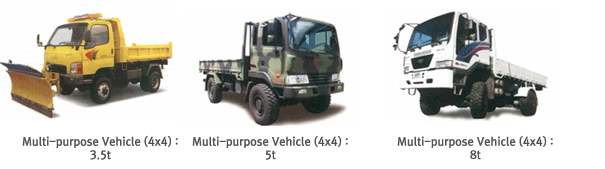

Multi-purpose Vehicles

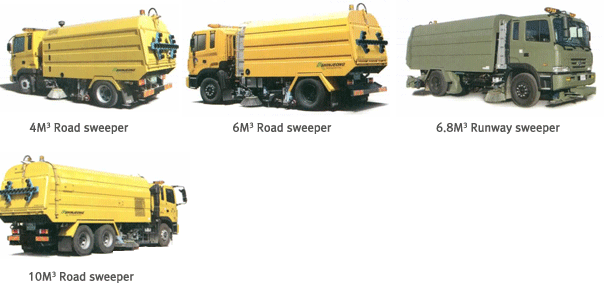

Road Sweepers

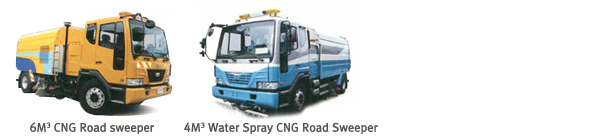

CNG Road Sweeper


AXLE

¡Ü DESCRIPTION
- CUTTING EDGE DEVELOPED AND LOCALIZED PRODUCT IN KOREA
- ADVANCED TECHNOLOGY PROVEN BY HYUNDAI MOTOR COMPANY AS OEM
- APPLICABLE FOR ALL WHEEL DRIVE 2.5/3.5/5/8.5/16 TON TRUCK AND MINI BUS
- UNIVERSAL APPLICATION FOR VARIOUS VEHICLE MAKER AND MODEL
- SELECTABLE OPTION CONSIDERED COST OR HIGH PERFORMANCE
- FLEXIBLE PRICE AND DELIVERY THAN GLOBAL SUPPLIER IN US AND EUROPE

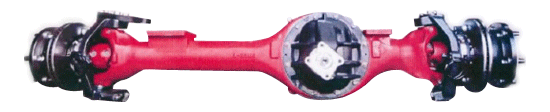

¡Ü 12.5/3.5TON FRONT DRIVE STEER RIGID AXLE
A) MODEL : SFA-25/SFA-35
B) CAPACITY(KG) : 2400/2900
C) GEAR RATIO : 5.000, 5.375, 6.166, 6.666
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 5 STUD/6 STUD M19*1.5
F) TRACK(MM) : 1689/1677
G) WEIGHT(KG) : 240
H) BRAKE : HYDRAULIC

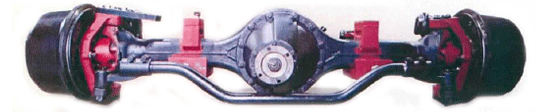

¡Ü 5TON FRONT DRIVE STEER RIGID AXLE
A) MODEL : SFA-50
B) CAPACITY(KG) : 4500
C) GEAR RATIO : 4.111, 4.333
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 8 STUD M20*1.5
F) TRACK(MM) : 1855
G) WEIGHT(KG) : 463
H) BRAKE : FULL AIR

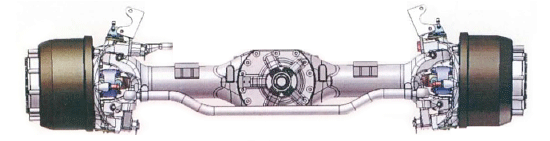

¡Ü 8.3TON FRONT DRIVE STEER RIGID AXLE
A) MODEL : SFA-83
B) CAPACITY(KG) : 8300
C) GEAR RATIO : 6.67
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 10 STUD M22*1.5
F) TRACK(MM) : 2017
G) WEIGHT(KG) : 950
H) BRAKE : FULL AIR
