NSN: 5965-01-128-3944
- FUNCTIONAL DESCRIPTION

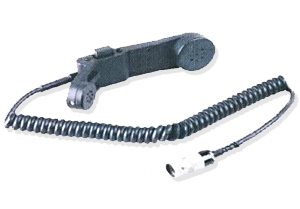

The Handset H-350/U is similar to the Handset H-250/U except for a modified (broader)
microphone frequency response and cable assembly.

- CONSISTS OF
Earphone : 1000 ohms per MIL-H-49078
Microphone : 150 ohms with extended
frequency range per
ON273827
Switch : Push -To-Talk with make/break
sequence
Cable : 14¡± retractable coiled cord extends
to approximately 6¡¯, 6 conductor
(2 twisted pair, 2 straight
conductors with an overall shield).
Standard termination is U-329/U
6 Pin Connector.
