SPECIFICATIONS

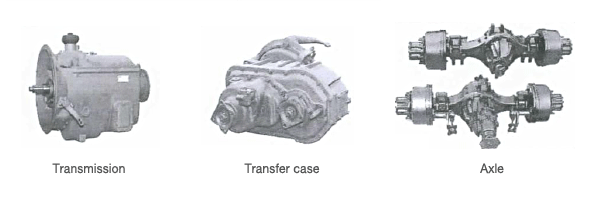

¡Ü Transmission Assembly
Model Approx
Weight
Torque
Capacity
Gear Ratio Applied
Vehicle
1st 2nd 3rd 4th 5th rev.
T3S5-M 113 kg
28 kgfm
5.980 3.500 1.910 1.370 1.000
5.040 Military 5/4 ton Truck
T4S5-M 110 kg 42.5 kgfm 5.980 3.500 1.860 1.000 0.800 5.040 Military 2¨ö ton Truck
T5S5-M 187 kg 72.2 kgfm 6.070 3.400 1.790 1.000 0.780 6.090 Military
5 ton Truck

¡Ü Transfer Case
Model Approx
Weight
Torque
Capacity
Gear Ratio Applied
Vehicle
High Low
T3S5-M 65 kg 160 kgfm 1.00 1.94 Military 5/4 ton Truck
T4S5-M 196 kg 290 kgfm 1.00 1.98 Military 2¨ö ton Truck
T5S5-M 285 kg 395 kgfm 1.00 2.16 Military 5 ton Truck

¡Ü Axle Assembly - Front Drive Axle
Model Approx
Weight
Type of
Housing
Max. Load
Capacity
Available
Gear Ratio
Type of
Axle
Applied
Vehicle
O5HS 260 kg Build Up 1,700 kg 5.857 Full-Floating Military 5/4 ton Truck
FC 240 432 kg Ban Jo 3.628 kg 6.722 Full-Floating Military 2¨ö ton Truck
FM 240 765 kg Ban Jo 5.443 kg 6.443 Full-Floating Military 5 ton Truck

¡Ü Axle Assembly - Rear Drive Axle
Model Approx
Weight
Type of
Housing
Max. Load
Capacity
Available
Gear Ratio
Type of
Axle
Applied
Vehicle
O4HA 80 kg Build Up 1,360 kg 5.375 Semi-Floating Military 1/4 ton Truck
10HA 220 kg Build Up

3,400 kg

5.857 Full-Floating Military 5/4 ton Truck
C240 400 kg Ban Jo

7,700 kg

6.722 Full-Floating Military 2¨ö ton Truck
M240 680 kg Ban Jo

10,500 kg

6.443 Full-Floating Military 5 ton Truck
