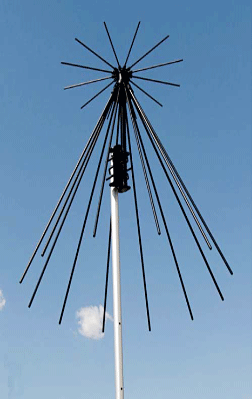

| The antenna AD-17/C-197GR is a wideband UHF
"disc-cone" antenna, intended for base
station. The antenna disc and radial elements
are made of high grade aluminum alloy rods, protected
with the irridite coating and painted with black
two-component PU UV-resistant paint, ensuring
low weight and excellent resistance against atmospheric
infuences. In spite of a low weight the antenna
is very robust due to the special construction
of the element joint nuts. The antenna is composed
of the support hub, 12 disc elements and 12 radial
(cone) elements. The antenna exhibits constant
gain and stable radiation pattern over the complete
frequency range 225-400 MHZ.
The antenna is equipped with mounting console
which allows installation on the appropriate
masts with the outer diameter between 25 to
60 mm. Other mounting options are available
with use of family of out consoles, clamps and
arms ADK. |
