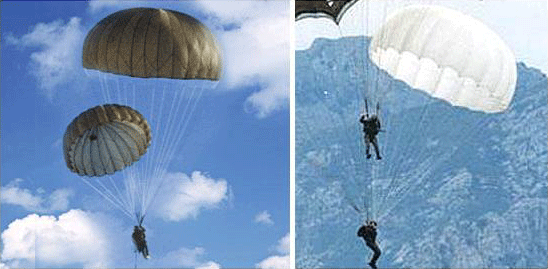

Parachute, Personnel, Troop-Chest, Type T-10R, Reserve     National Stock Number : 1670-00-892-4218 Part Number : 62C4317-10 THE ASSEMBLY CONSISTS OF PART NO COMPONENTS 48J7156-3 24FT. Diameter Canopy O.G (48J7156-2 Natural (White) 62J4346 Pack Assembly 62C4250 Ripcord 49J7161-1 Pilot Chute TECHNICAL SPECIFICATION Canopy Diameter 24ft. (Nominal) Canopy Gores (Number) 24 Canopy Material 1.1 oz Ripstop Nylon (MIL-C-7020, T/1) Standard Color Olive Green or Natural White Suspended Line (Material) MIL-C-5040, T/3 (T/S ; 550lb) Number Suspended Line / Length 24/20FT Maximum Suspended Weight 250LB Opening Time 1.5 Seconds at Terminal Velocity Rate of Descent at 90KG AUW; 6.7 M/sec (22fps) Maximum Deployment Speed 241km/H (130kts) Assembly Weight 5.5kg (12lb)
