¢º Home > Product > Vehicular Antenna


°¡¿øÀÎÅͳ»¼Å³Î(ÁÖ)
NSN : 5985-32-031-0781


¡Ü Frequency Range : 30 ~ 80 MHz
¡Ü VSWR : Max 3.5:1
¡Ü Power Handling : 70 W
¡Ü Base Matching : MX-6808A

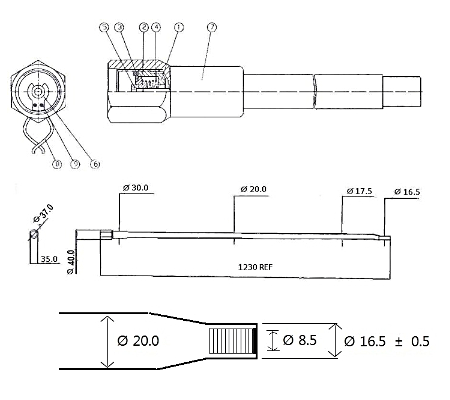

Upper whip (Antenna Element AT-2731)
¡Ü Length : 1230mm Ref.
¡Ü High voltage protection (Test voltage shall be 10.000 Vrms)
¡Ü Input Impedance : 50 Ohm

NO PART NAME Q'TY PART NO REMARKS
1 HOLDER, SPRING 1 SM-B-542003
2 INSERT 1 SM-B-542004
3 RING 1 SM-B-542005
4 SPRING 1 SM-B-542006
5 CONTACT(A) 1 SM-B-542007
6 CONTACT(B) 1 SM-B-542008
7 MAST SECTION ASS'Y 1 SM-B-542009
8 WIRE, LOCK, 5'LG 1 MS20995C32
9 SCREW 2 MS51957-1 FF-S-92
